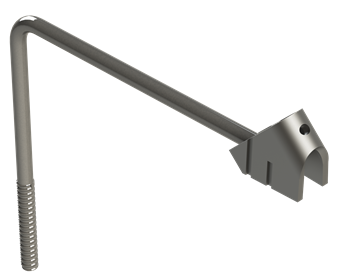

L shape wire with a welded 45° strut supports exterior overhang bracket while other end is threaded with a length of 1/2” coil thread to supports interior decking formwork.
| Data Sheet: |  |
Product Description
Application:
Fixed hanger placed over steel beam or concrete girder and permits adjustment to grade after formwork is installed. Break back capability on horizontal leg of hanger. For concrete girders of box beams, legs formed at 15° to vertical are suggested. There is a 1″ break back feature on horizontal leg of the fixed hanger
Product Specification:
- 2 to 1 safety factor
- 4,500 lbs. per side safe working load
- Hanger must have equal load on both sides of beam
- Available; E-Galv. Epoxy and Plain
Features:
- 45° to strut
- Vertical leg angle at 90° or 15°
- 1″ break back
