Featured Products:

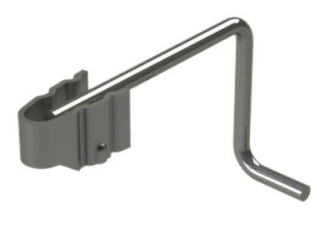

Our C24 Precast Half Hanger are interior form hangers that consist of a U shape end clip welded to a shaped wire strut
| Data Sheet: |  |
Product Description
Application:
C24 are designed and developed for use in wide precast concrete girders. They are used in all types of precast concrete bridge girders and beams to support temporary constructed formwork. Precast hangers are installed by the precaster during the girder production process with predetermined centers prior to installment provided by the bridge contractor.
Product Specification:
- Type C for concrete beam
- 2 to 1 safety factor
- 6,000 lb. safe work load
- Available; Epoxy Coated, Hot Dip Galvanize and Plain
Features:
- Shaped strut configuration
- 90° end clip position
- Available; standard or custom lengths
Manufacturer Info
Dayton Superior
AT DAYTON SUPERIOR, WE ARE BUILDING STRENGTH
From our 17,000 hard-working products to our 1200+ dedicated people, Dayton Superior is all about building strength. As the leading single-source provider of concrete accessories, chemicals, and forming products for the non-residential construction industry, we deliver strong, proven products and build strong relationships built on integrity, responsiveness, and unwavering support.
ACCESSORIES
Meticulous attention to detail is built into every product we sell. Our comprehensive range of accessories for every concrete job is unmatched in the industry.
CHEMICALS
Repair, connect, seal, and protect new and existing concrete with our superior portfolio of concrete chemical solutions.
FORMING
Precision endurance, performance, and strength are engineered into our forming systems, including the globally recognized Symons® by Dayton Superior brand.
