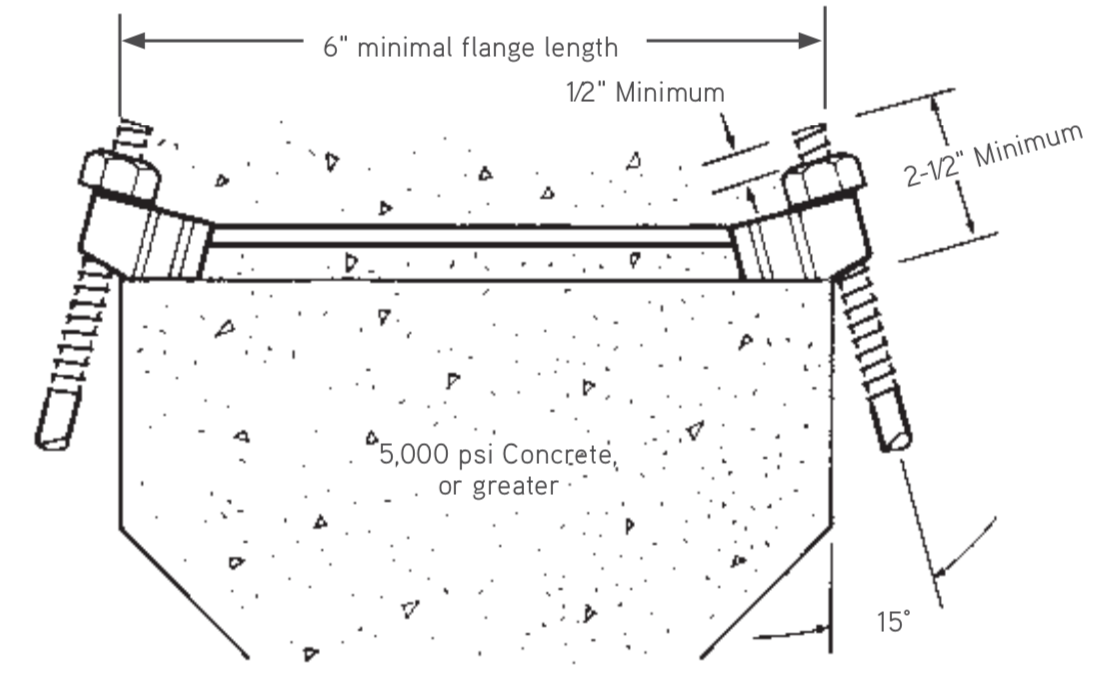

The Type 8 Press-Steel hanger is similar to the standard Type 1 except the two end clips are designed to angle the 1/2″ diameter bolts at 15° from vertical. It is available in two different versions, a standard version or a heavy version. The standard version uses a 0.375″ diameter wire to connect the end clips while the heavy version uses a 0.440″ diameter wire.
| Data Sheet: |  |
Product Description
The Type 8 Press-Steel hanger is similar to the standard Type 1 except the two end clips are designed to angle the 1/2″ diameter bolts at 15° from vertical. It is available in two different versions, a standard version or a heavy version. The standard version uses a 0.375″ diameter wire to connect the end clips while the heavy version uses a 0.440″ diameter wire.
This hanger design offers the bridge contractor an advantage on certain concrete girders, as it allows additional clearance below the formwork to support ledgers. A B42 Batter Washer is recommended for use beneath the ledgers, which will allow for proper bearing of the head of the 1/2″ diameter coil bolt.
